B-1157-12

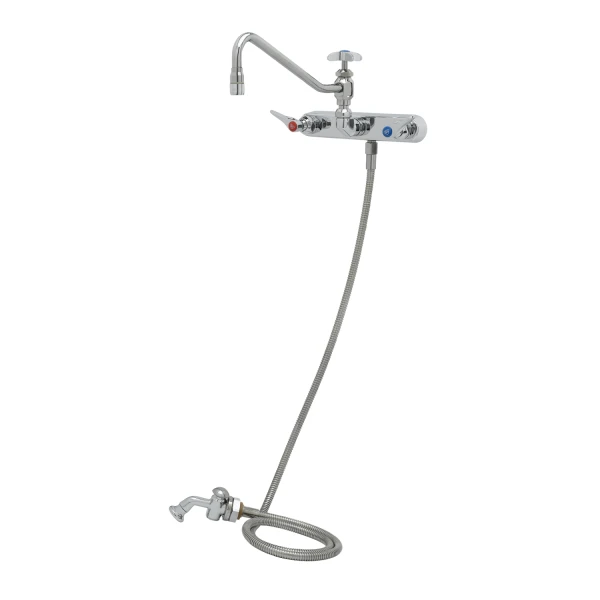

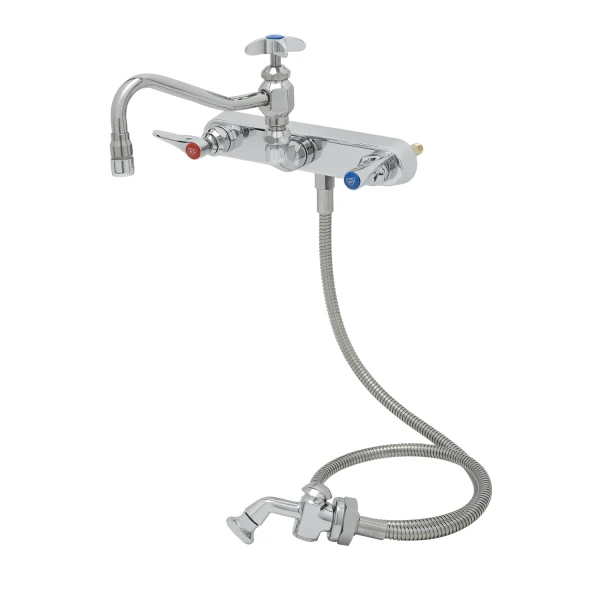

Name: Workboard Faucet, 8" Wall Mount, 12" Swing Nozzle w/ Diverter, Hose, Spray Valve
Brand: T&S Brass
Price: 1202.50 USD
Availability: InStock

Workboard Faucet, 8" Wall Mount, 12" Swing Nozzle w/ Diverter, Hose, Spray Valve

share this page Where to Buy

List Price $1,202.50

8" wall mount mixing faucet with chrome plated brass body, swivel/rigid diverter valve with 11 7/8" nozzle with 2.2 GPM aerator, compression cartridges with spring checks, lever handles, 1/2" NPT male inlets, chrome plated escutcheon, self-closing spray valve with 2.2 GPM rosespray, 72" flexible stainless steel hose and deck flange hose guide. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

B-1105-KIT

Install Kit
List Price: $59.40

See full details

Body: 8 in Centers (203.2 mm)
Body: Workboard
Body Mount: Wall
Cartridge-Spindle: 1/4 Turn Compression
Feature: Side Spray
Handle: 4-Arm (Cross)
Handle: Lever
Material: Brass Construction
Nozzle: 12 in (304.8 mm)
Nozzle: Nozzle
Nozzle: Swivel
Nozzle Outlet Type: Aerator
Nozzle Outlet Type: Flow Control Device
Nozzle Outlet Type: Non-Aerated Spray Device
Nozzle Outlet Type: Rosespray
Pressure Max: 125 psi (8.62 bar)
Pressure Min: 20 psi (1.38 bar)
Temperature Max: 140 F (60℃)
Temperature Min: 40 F (4.44℃)

1/2" NPT male inlets
8" wall mount mixing faucet w/ chrome plated brass body
Chrome plated escutcheon
Deck flange to hold spray valve when not in use
Includes lock washer to convert swivel nozzle to rigid.
Lever handles w/ color coded indexes
Material: Chrome plated brass body, diverter valve body, spray valve body, deck flange, tubular spout, stainless steel hose, chrome plated metal handles and escutcheon
Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
Self-closing spray valve with 2.2 GPM rosespray, 72" flexible stainless steel hose and deck flange hose guide
Swivel/rigid diverter valve w/ 4-arm handle and 11 7/8" nozzle with 2.2 GPM aerator, Series 2 (B-0199-02)
Tailpieces and nuts for 1/4" NPT male connections

Certifications

ASME A112.18.1 / CSA B125.1
Buy American Act (BAA)
NSF/ANSI 372 (Lead Content)
NSF/ANSI/CAN 61 Q≤1

Box Dimensions: 3.75 x 10.25 x 15.44
Weight: 9.60 lbs (4.35 kg)
UPC: 671262699617

California Prop #65 Warning

California Prop #65 Warning

WARNING

California Proposition 65

WARNING: This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information, please go to www.P65Warnings.ca.gov.

Related Literature

Resources

Spec Drawings/Parts Explosion

Submittal

Warranty: One Year (Limited)

Installation Instructions

Workboard Faucet

Replacement Parts Parts Explosion

B-0199-02

Aerator, Non-Splash, 2.2 GPM, 3/8" NPSM Male Threads

B-1157-12

Workboard Faucet, 8" Wall Mount, 12" Swing Nozzle w/ Diverter, Hose, Spray Valve

List Price $1,202.50

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Temperature Max: 140 F (60℃)

Temperature Min: 40 F (4.44℃)

B-1105-KIT

Body: 8 in Centers (203.2 mm)

Body: Workboard

Body Mount: Wall

Cartridge-Spindle: 1/4 Turn Compression

Feature: Side Spray

Handle: 4-Arm (Cross)

Handle: Lever

Material: Brass Construction

Nozzle: 12 in (304.8 mm)

Nozzle: Nozzle

Nozzle: Swivel

Nozzle Outlet Type: Aerator

Nozzle Outlet Type: Flow Control Device

Nozzle Outlet Type: Non-Aerated Spray Device

Nozzle Outlet Type: Rosespray

Pressure Max: 125 psi (8.62 bar)

Pressure Min: 20 psi (1.38 bar)

Temperature Max: 140 F (60℃)

Temperature Min: 40 F (4.44℃)
